How to Repair a Damaged Floor Joist (Without Tearing Out Your Whole Floor)

A bouncy spot in the floor, a crack in the ceiling drywall below it, a joist someone cut a hole through years ago for a plumbing line that’s now too big — a damaged floor joist doesn’t always mean a full teardown. In most cases it can be reinforced in place with the right steel connector, in a few hours, without removing the subfloor or ripping open the ceiling below.

This guide covers Metwood’s Joist Repair Reinforcer line — the steel connectors built specifically to repair holes and notches in solid-sawn and engineered joists — and which one fits which type of damage.

How do you know if a floor joist is damaged?

Look for these signs before you start any repair:

• A soft, springy, or bouncy spot in the floor
• Visible cracks running along the joist, especially near the bottom edge
• A hole cut through the joist for plumbing, HVAC, or wiring that looks too large or is in the wrong spot
• A notch cut into the top or bottom edge of the joist, common in older homes where a plumber or electrician needed clearance

Different damage calls for a different reinforcer. Here’s how the lineup maps to each one.

Repairing an oversized or improperly cut hole: 2810HR Joist Repair Hole Reinforcer

This is one of the most common floor joist problems in existing homes — a plumber or HVAC contractor needed to run a line through a joist, cut a hole that’s larger than code allows (or in the wrong location), and the joist is now structurally compromised.

The 2810HR Joist Repair Hole Reinforcer is a two-piece steel bracket that clamps around the joist at the hole location and restores the joist’s strength to the equivalent of a smaller, code-permitted hole.

What it fixes:

• Round holes up to 6″ in diameter in nominal 2×10 or 2×12 solid-sawn joists
• Holes up to 4″ in 2×8 joists
• One reinforcer per joist; the hole must sit at least 12″ from the nearest support

How it works: Two identical steel halves sandwich the joist on either side of the hole and are screwed together with 30 self-drilling screws on a 2×10 (24 on a 2×8), driven through pre-punched alignment holes. No welding, no jacking, no subfloor removal.

Code backing: Independent testing by Intertek (Code Compliance Research Report CCRR-0279) confirmed that a 2×10 joist with a 6″ hole, reinforced with the 2810HR, tests comparable in bending strength, stiffness, and shear to an unreinforced 2×10 with a standard code-permitted hole. It’s evaluated for compliance with the IBC and IRC (2015, 2018, and 2021 editions).

Limitations to know before you buy one: the 2810HR is rated for nominal 2×10/2×12 solid-sawn joists (Southern Pine or Spruce-Pine-Fir, or any species with a specific gravity of 0.42 or higher), in dry conditions where lumber moisture content is 19% or less. It isn’t rated for preservative-treated lumber, and only one reinforcer is allowed per joist.

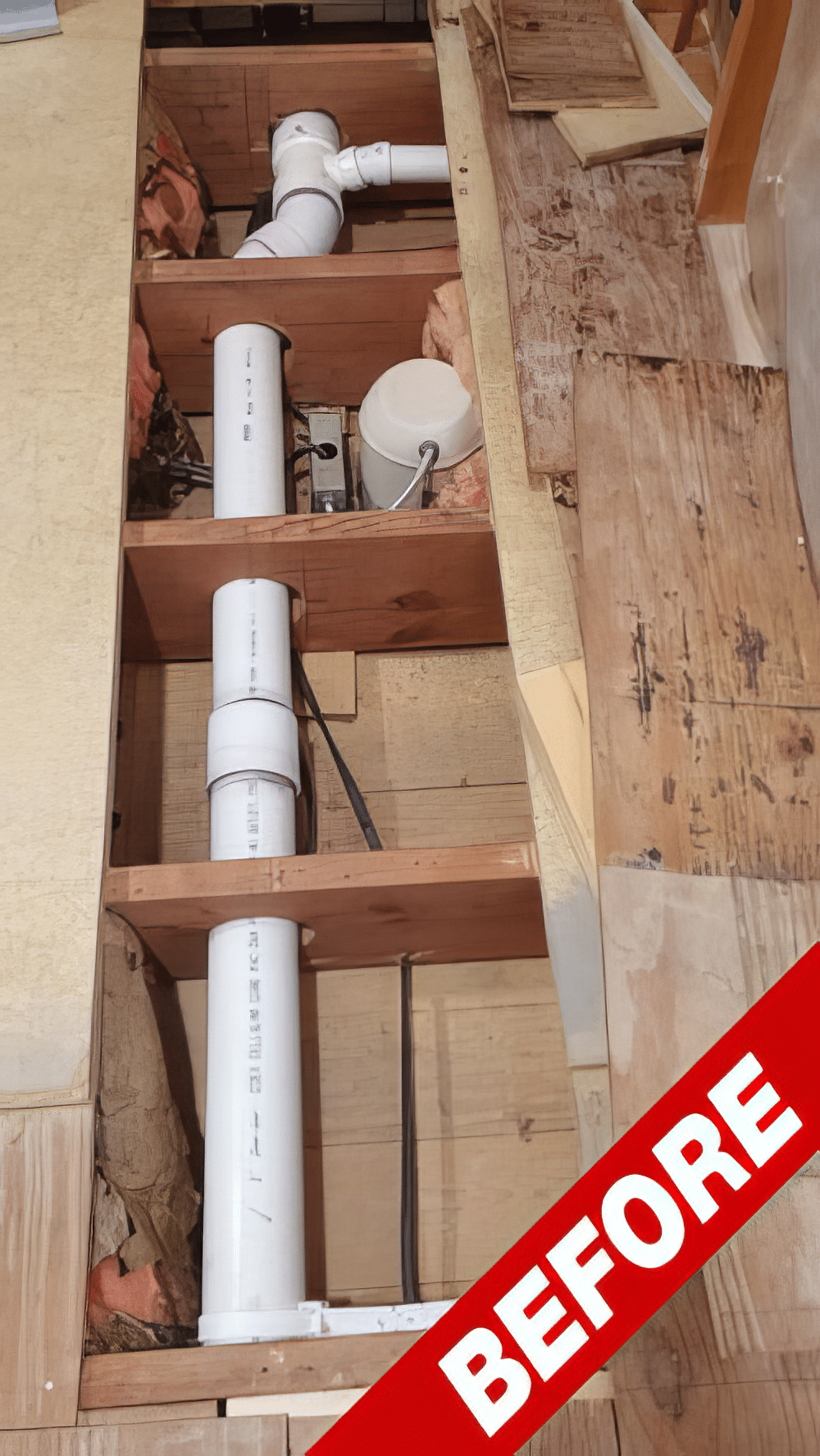

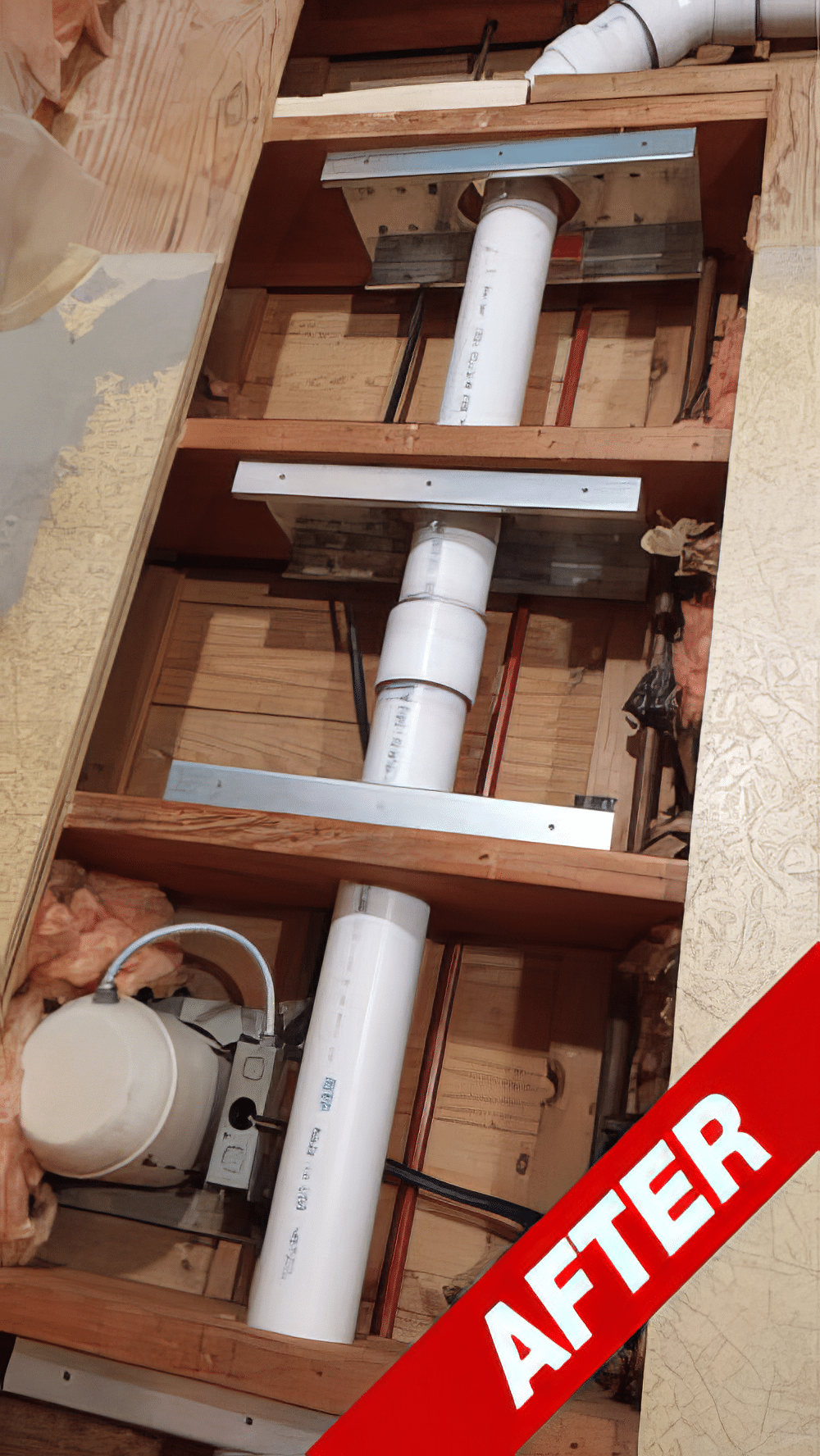

A real 2810HR repair

Here’s an actual before-and-after from a 2810HR installation — an oversized hole cut for PVC plumbing, reinforced in place.

Repairing a notched joist: 210NR and 28NR Notch Reinforcers

Notches — where wood was cut out of the top or bottom edge of a joist rather than drilled through the middle — are more damaging to a joist’s strength than a hole in the same spot, because they remove material from the joist’s most heavily stressed fibers. Without a reinforcer, code doesn’t allow a notch at all in most of a joist’s span; a notch is only permitted in the outer thirds and is limited to 1/6 the joist depth.

Metwood makes two dedicated notch reinforcers, sized to a common notch footprint:

• 210NR Joist Repair Notch Reinforcer — repairs (or lets you create) a 5″ wide by 3″ deep notch in a 2×10 joist
• 28NR Joist Repair Notch Reinforcer — repairs the same 5″ wide by 3″ deep notch in a 2×8 joist

Both are patented, engineered, and tested, install with no glue required, and come with all fasteners included.

Repairing damaged engineered I-joists

If your floor uses engineered wood I-joists rather than solid-sawn lumber, damage usually shows up as a cut or split flange (the top or bottom rail) or an oversized opening cut into the web (the thin center panel).

• 250 FR11 / FR14 / FR16 I-Joist Flange Reinforcers repair a notch cut into the top or bottom flange of an 11-7/8″, 14″, or 16″ tall I-joist with a 2.5″ flange (matched to the joist depth)
• 250 WR I-Joist Web Reinforcer repairs an opening in the web up to 12″ high by 16″ wide

Both are U-channel steel stiffeners that sandwich the damaged section and fasten through the flange or web with screws, restoring the I-joist’s load path without cutting it out and replacing the whole span.

Repairing a severely cracked, split, or sagging joist

Holes and notches are localized damage. A joist that’s cracked along its length, split at a knot, or sagging under load has lost strength across a broader section — and a reinforcer bracket alone usually isn’t enough.

The standard fix here is sistering: fastening a new structural steel member alongside the damaged joist so it shares the load, or upgrading a single undersized joist or beam to a doubled configuration. Metwood’s structural steel beams are pre-engineered, can be trimmed to length on site with ordinary power tools, and fasten with self-drilling screws rather than welding — which makes sistering possible in a finished floor system without a torch or a crane. This is a job for an experienced contractor or engineer to size correctly; call Metwood directly (540-334-4294) to talk through the specific application.

DIY or call a professional?

A single 2810HR, 210NR, or 28NR installation on an accessible joist, following the manufacturer’s installation instructions, is within reach for an experienced DIYer with basic tools. Where you should bring in a structural engineer or licensed contractor:

• More than one joist in the same area is damaged
• The damage is from ongoing water intrusion or active rot rather than a single old cut
• You’re not sure whether a hole, notch, or crack falls within a reinforcer’s rated limits

Local building departments generally require a permit for structural floor repairs, and an inspector will want to see the installation match the manufacturer’s published instructions and code compliance documentation.

Frequently Asked Questions

Can you repair a floor joist without replacing it?
Yes, in most cases. Localized damage — an oversized hole, a notch, or a damaged section of an I-joist — can be reinforced in place with a steel connector like the 2810HR, 210NR, 28NR, or an I-Joist Flange/Web Reinforcer, rather than cutting out and replacing the entire joist.

What size hole can you cut in a floor joist?
Without reinforcement, code limits vary by joist size and species, generally allowing a hole no larger than 1/3 the joist depth. With a Metwood 2810HR Joist Repair Hole Reinforcer installed, a 2×10 or 2×12 joist can safely accommodate a hole up to 6″ in diameter (4″ on a 2×8), tested to perform comparably to an unreinforced joist with a standard code-permitted hole.

Do I need an engineer to repair a floor joist?
For a single, localized repair using a manufactured, code-compliant reinforcer installed per the manufacturer’s instructions, most jurisdictions don’t require a project-specific engineered letter. If the damage falls outside the product’s rated limits — different lumber species, oversized holes, multiple damaged joists, or a load-bearing beam — an engineered letter or professional assessment is required.

What causes floor joists to get damaged in the first place?
The most common causes are oversized or improperly located holes and notches cut for plumbing, HVAC, or electrical work; long-term moisture exposure or rot, especially near exterior walls, bathrooms, and deck ledger connections; and age-related sagging in undersized or long-span joists.

How do you fix a floor joist without removing the subfloor?
Reinforcing brackets like the 2810HR, 210NR, and 28NR install from below, working from the basement or crawl space ceiling, and don’t require cutting into or removing the subfloor above.

Shop the products in this guide

Metwood Building Solutions manufactures code-compliant structural steel repair and reinforcement products, tested and evaluated by Intertek. For help identifying the right fix for your situation, visit metwood.com or call (540) 334-4294.
